    Hydraulic Ironworker machines in UAE

    Hydraulic Ironworkers are machines capable of shearing, notching, and punching holes in steel plates. These machines have become critical in manufacturing and steel fabrication shops, maintenance departments, etc due to their delivery of precision cuts, efficiency, and minimal wastage. Made of very industry-heavy steel, Hydraulic Ironworkers can withstand ginormous force allowing easier manipulation of metal into desired shape and size, making it essential and reliable industrial machinery. Book your hydraulic Ironworker machines in UAE.

    Advantages of hydraulic ironworker machines

    The Q35Y/ Q35YS series of hydraulic ironworkers from KINGDOM comes with larger power motors and special pumps to enable synchronized punching and shearing of the steel plates. It features multiple functions like round hole, oblong hole punching; steel plate, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending and more while ensuring adherence to every global industrial-grade standard. Hydraulic ironworkers are crucial in the metal processing and manufacturing industry as they can withstand enormous force and allow quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table etc. Some of the other features of the machine include its ease of operation, high efficiency and low maintenance cost.

    Main Features of Hydraulic Ironworker machines

    1. Smart and innovative design frame structures
    2. Eliminates vibration with steel welds of superior precision strength and rigidity
    3. Hydraulic Ironworker steel frame Q235 =American standard steel A306 GR55
    4. Comes with two hydraulic cylinders
    5. Easily adjustable stroke control with ruler
    6. Indicator display on both hydraulic cylinders
    7. Electric back gauge auto stop
    8. Moveable working light
    9. Hydraulic system with overload protection system
    10. Large punching, notching, flat shearing table with ruler gauge
    11. Emergency safety stop button
    MODEL Q35Y-16 Q35Y-16D Q35Y-20 Q35Y-20D Q35Y-25 Q35Y-25D Q35Y-30 Q35Y-30D Q35Y-40 Q35Y-40D Q35Y-50 Q35Y-50D
    Punching Pressure 65 Ton 90 Ton 120 Ton 160 Ton 200 Ton 250 Ton
    Punch Capacity ø25 x 16 ø30 x 20 ø35 x 25 ø38 x 30 ø40 x 35 ø40 x 40
    (Diameter x Thickness) ø50 x 8 ø50 x 12 ø50 x 18 ø50 x 24 ø50 x 28 ø50 x 32
    Throat Depth: 300 355 400 600 600 600
    Throat Depth D: 500 500 500 750 750 750
    Max. Stroke Length 80 80 80 80 80 80
    Cycles / Min. (Max. Stroke Length) 12 10 10 10 10 10
    Working Height Up to Die 960 1010 1065 1170 1215 1245
    MODEL Q35Y-16 Q35Y-16D Q35Y-20 Q35Y-20D Q35Y-25 Q35Y-25D Q35Y-30 Q35Y-30D Q35Y-40 Q35Y-40D Q35Y-50 Q35Y-50D
    Max.Shearing Thickness 16 20 25 30 35 40
    Flat Bar Shearing 250 x 16 330 x 20 330 x 25 330 x 30 400 x 35 400 x 40
    (Width x Thickness) 400 x 8 480 x 10 600 x 16 600 x 20 700 x 25 750 x 30
    Blade Length 410 485 605 605 710 760
    Angle Flange Trim 100 100 100 100 120 140
    Working Height 915 890 900 950 935 950
    MODEL Q35Y-16 Q35Y-16D Q35Y-20 Q35Y-20D Q35Y-25 Q35Y-25D Q35Y-30 Q35Y-30D Q35Y-40 Q35Y-40D Q35Y-50 Q35Y-50D
    At 90°Shearing 125 x 125 x 12 140 x 140 x 12 160 x 160 x 14 180 x 180 x 16 200 x 200 x 18 200 x 200 x 20
    At 45°Miter Shearing 50 x 50 x 5 50 x 50 x 5 60 x 60 x 6 60 x 60 x 6 100 x 100 x 10 120 x 120 x 10
    Working Height 1095 1155 1210 1260 1360 1460
    MODEL Q35Y-16 Q35Y-16D Q35Y-20 Q35Y-20D Q35Y-25 Q35Y-25D Q35Y-30 Q35Y-30D Q35Y-40 Q35Y-40D Q35Y-50 Q35Y-50D
    Round Bar Shear ø45 ø50 ø60 ø65 ø7 ø80
    Square Bar Shear 40 x 40 50 x 50 50 x 50 55 x 55 60 x 60 65 x 65

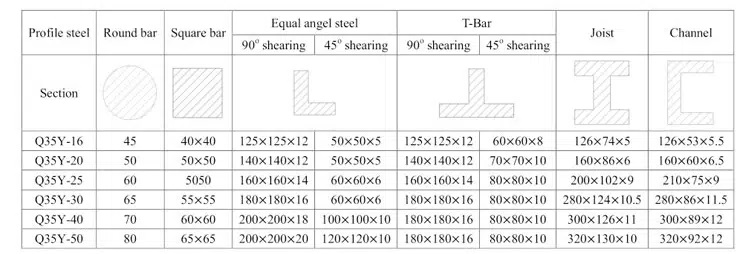

    Channel Shear* (Side x Side x T) 126 x 53 x 5.5 160 x 60 x 6.5 210 x 75 x 9 280 x 86 x 11.5 300 x 89 x 12 320 x 92 x 12
    I Beams Shear* (Side x Side x T) 126 x 74 x 5 160 x 86 x 6 200 x 102 x 9 280 x 124 x 10.5 300 x 126 x 11 320 x 130 x 10
    Working Height 1210 1220 1260 1470 1510 1550
    MODEL Q35Y-16 Q35Y-16D Q35Y-20 Q35Y-20D Q35Y-25 Q35Y-25D Q35Y-30 Q35Y-30D Q35Y-40 Q35Y-40D Q35Y-50 Q35Y-50D
    Rectangular Notcher (W x D x T) 57 x 100 x 10 57 x 100 x 13 57 x 100 x 14 60 x 100 x 16 60 x 100 x 18 60 x 100 x 20
    Vee-Notcher (Side x Side x T) 95 x 95 x 10 100 x 100 x 12 105 x 105 x 13 105 x 105 x 16 105 x 105 x 18 105 x 105 x 20
    Large V-Notcher (Side x Side x T) 145 x 145 x 8 145 x 145 x 10 145 x 145 x 12 145 x 145 x 13 145 x 145 x 15 145 x 145 x 18
    Working Height 910 900 860 965 950 975
    MODEL Q35Y-16 Q35Y-16D Q35Y-20 Q35Y-20D Q35Y-25 Q35Y-25D Q35Y-30 Q35Y-30D Q35Y-40 Q35Y-40D Q35Y-50 Q35Y-50D
    Single Vee Press Brake (W x T) 57 x 100 x 10 250 x 15 250 x 18 250 x 20 250 x 20 250 x 22
    Multi Vee Press Brake 500 x 5 700 x 5 700 x 5 700 x 5 700 x 8 700 x 8
    Pipe Notching ø100 ø100 ø100 ø100 ø100 ø100
    MODEL Q35Y-16 Q35Y-16D Q35Y-20 Q35Y-20D Q35Y-25 Q35Y-25D Q35Y-30 Q35Y-30D Q35Y-40 Q35Y-40D Q35Y-50 Q35Y-50D
    Electric Power (HP) 4 kW 5.5 kW 7.5 kW 11kw 15 kW 18 kW
    Net Weight (Apr.) D 1600 kg 1600 kg 2200 kg 2200 kg 3800 kg 4200 kg 6300 kg 6700 kg 8800 kg 9300 kg 12800 kg 13400 kg
    Machine Dimension (Apr.) (L x W x H) D 1650×800 x1800 1800×800 x1800 1830×800 x1900 1930×800 x1900 2200×1000 x2100 2300×1000 x2100 2600×1050 x2400 2700×1050 x2400 2900×1300 x2650 3000×1300 x2650 3000×1440 x24503100x1440 x2450

    Brief Introduction

    1. Multiple Functions
    KINGDOM’s Q35Y/ Q35YS series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steelplate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

    2. Superior Standard
    The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale,
    electronic back gauge, gauging table with stops, punching base table, safety guards and more.
    It’s the first choice for metal processing of modern manufacturing industries (such as the metallurgy, bridge, and communication, electric power, military and other industries).

    3.Design Strength
    Our machine is designed via the latest technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.

    4.Q35Y Series
    Q35Y series is a quite advanced version compared with standard Q35Y series. Q35Y series hydraulic ironworker has larger power motors and special pumps, so punching position and shearing position can work synchronously.

    Punching

    Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.

    Large viewing window on stripper swing away design for ease of operation. Large two-piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement.

    Shearing

    Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold-down device for round/ square bar, channel/ beam cutting. Large strong guarding or max safety.

    The angle shear has the ability to cut angle at 45 degrees. Both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond-shaped blade for quality cuts that are minimal material lost and deformity.

    Notching

    Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.

    Notching is a metal-cutting process used on sheet metals or thin barstock, sometimes on angle sections or tube.

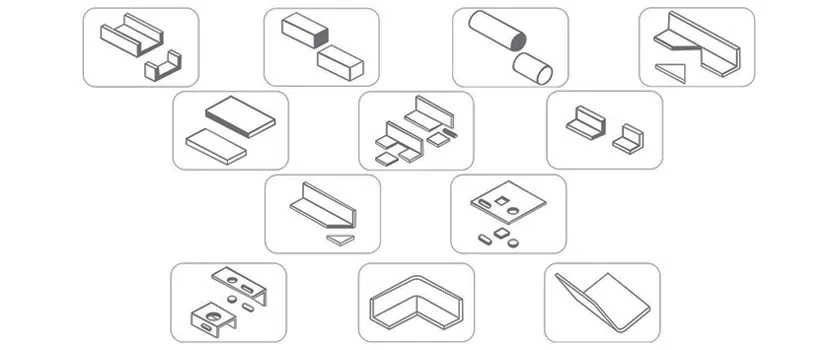

    What products can we do?

    Hydraulic Ironworker Technical Parameter

    Unit: mm
    Gross Weight and Packing Dimension depend on customers’ needs.
    Based on material strength of 45kg/mm2 tensile.
    Design and specifications subject to change without notice.

    For more details click here.

    Main Features of Hydraulic Ironworker

    1. Professionally engineered design frame structures
    2. Steel welds with high precision strength and rigidity to eliminate vibrations
    3. Hydraulic Ironworker steel frame Q235 =American standard steel A306 GR55
    4. Hydraulic fuel tanks and ironworker frame built by our Factory
    5. Two hydraulic cylinders
    6. Easy adjustable stroke control with ruler
    7. Indicator on both hydraulic cylinders
    8. Electric back gauge auto stop
    9. Moveable working light
    10. Hydraulic system with overload protection system
    11. Large punching, notching, flat shearing table with ruler gauge
    12. Emergency safety stop switch
    13. Easy maintenance

    Product Display

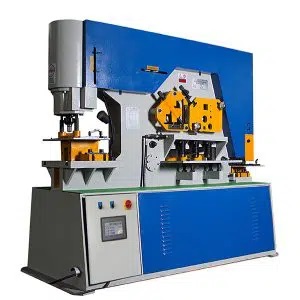

    best-hydraulic-iron-workers-in-uae
    top-notch-iron-workers-in-dubai-uae

    Accessories List of hydraulic ironworker

    1. A set of round hole punching die
    2. A set of angle steel blade
    3. A set of round and square bar blade
    4. A set of shearing plate blade

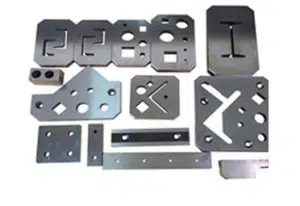

    5. A set of notching blade

    The above moulds will be installed in the machine, safety guards are also fitted as standard on all working stations. For other dies and blades, customers need to order and pay additionally.

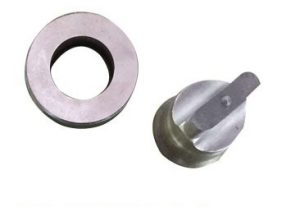

    Punching Die

    1. A set of round hole punching die will be installed in the machine.
    2. For other size of punching dies, you have to order and pay additionally.

    Flat Bar Cutting Blade

    1. The cutting blade will be installed in the machine.

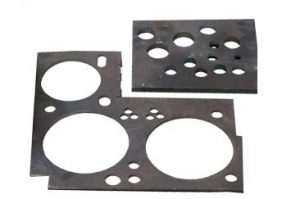

    Angle Steal Shearing Blade

    1. The cutting blade will be installed in the machine.

    Profile Cutting Blade

    1. A set of square and round bar blades will be installed in the machine.
    2. Also if you have to shear channel steal or l-beam steal please inform me the size.
    3. For other blade, you have to order and pay additionally.

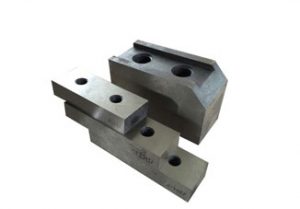

    Notching Blade

    1. The Notching Blade will be installed in the machine.

    Advantage of Hydraulic Ironworker

    1. OEM
      Customize color and function ,and providing 3 sets free customized molds
    2. Quality
      Seal in the Cylinders from NOK, Japan;Electrical components from France Schneider;Valve from Germany Rexroth;Pump from Japan Sumitomo.Our product quality guarantee period is 13 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
