Drill And Tool Grinding Machine

Our drill and tool grinding machines, characterized by easy set up and easy to operate, fast grinding and high accuracy are produced by professional manufacturers PEIPING PRECISION. We have been the supplier of tools, cutters, and drill grinding machines in UAE and nearby Gulf countries. The quality of our machines is trustworthy by the customers and enjoy a high reputation in the market. Please send us your enquiry and our sales team will get in touch with you.

Main Product

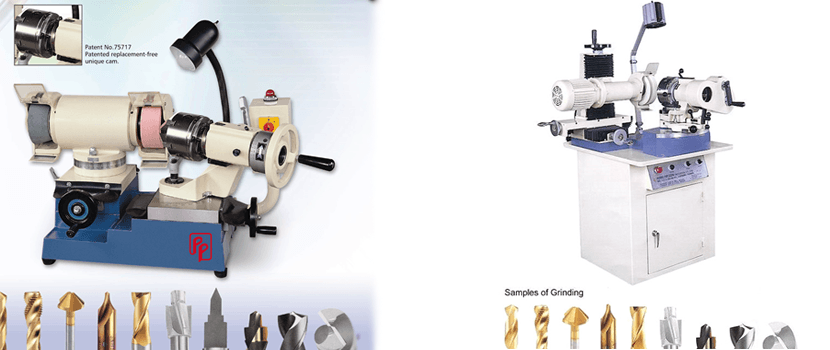

UNIVERSAL CUTTER GRINDER

Grinding Size: Dia.2mm ~ Dia.32mm(straight or taper shank).
Grinding Capacity: drills, step drills, NC drills, taps, counter sink drills, end mill lips, round bars.

Specifications:

Longitudinal travel of table: 120mm
Cross travel of saddle: 135mm
Rotary angle of wheel head: 360°
Point angle: 90° ~ 180°
Size of wheel: 125 x 50 x 31.75mm
Speed of wheel: 3,600 RPM
Motor: 3/4 HP, 110V / 220V / 380V
W. / G.W.: 95kgs / 120kgs
Size of packing (L x W x H): 800 x 550 x 670mm

Features:

Double wheels. Only to rotate the motor when want to grind the tool with different materials. It can increase the safety & save the time for replacing & repairing the grinding wheel.
Adopts precise 6 pawl self-centering chuck, clipping one time and can grind th blade of drills and do the repairing of drills abdomen. The angle of drill both sides and the length of blade are same after grinding. It can keep the accuracy of the center without off center.
Unique cam-replacement-free.
Simple to set up.
Easy to operate.
Grinding fast and high accuracy.

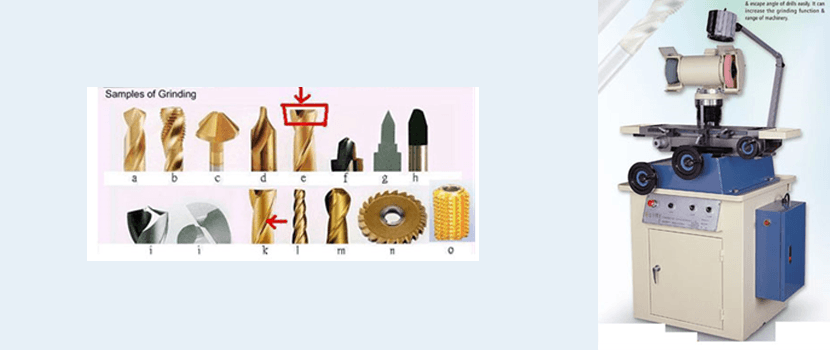

Universal Drill & Tap Grinder

Grinding Size:PP-60N: Dia.2 ~ Dia.60mm (straight or taper shank)
PP-80N: Dia.4 ~ Dia.80mm (straight or taper shank)
PP-100: Dia.5 ~ Dia.100mm (straight or taper shank)
Grinding Capacity: Drills,Step Drills, Counter sink drills, taps, end mills, round bars…etc.

Specifications:

Longitudinal travel of table: 250mm
Cross travel of saddle: 180mm
Vertical adjustment of wheel head: 165mm
Rotary angle of wheel head: 360°
Clearance angle: 0° ~ 18°
Point angle: 40° ~ 180°
Size of wheel:
- 180 x 32 x 31.75mm
- 180 x 19 x 31.75mm

Speed of wheel: 3,600 RPM

Motor:
- 60N: 1/2 HP, 220V / 380V
- 80N/100: 1 HP, 220V / 380V
W. / G.W.:
- 60N: 270 / 320
- 80N: 310 / 370
- 100: 330 / 390
Size of packing (L x W x H):
- 60N: 950 x 1,000 x 1,540mm
- 80N/100: 1,120 x 1,000 x 1,540mm

Features:

Adopt the precise slef-centering chuck, clipping one time then can grind the blade of drills and do the paring of drills abdomen.
The angle of drills and the length of the blade are same after grinding. It can keep the dril center without off center.
The motor main spindle can install with two wheels. The blade and the center of drill can be grinded one time. It can save the time for replaceing the grinding wheel.
The motor can be adjusted 160mm up & down, it can increase the control of machinery.
Dual Cams
Grinding fast and high accuracy.
Simple to set up.
Easy to operate.

UNIVERSAL TOOL GRINDER

Specifications:

Longitudinal travel of table: 230mm
Cross travel of saddle: 180mm
Vertical adjustment of wheel head: 120mm
Rotary angle of wheel head: 360°
Rotary angle of up-down spindle: 360°
Working table area: 620 x 190mm
Size of wheel:
- 180 x 25 x 31.75mm
- 125 x 50 x 31.75mm
Speed of wheel: 3,600 RPM
Motor: 3/4 HP, 110V / 220V / 380V
