Stationary Laser Marking Machines in UAE

Fiber laser marking machine:

Fiber laser marking machines to make non-contact permanent marking in a variety of metal and non-metal material surface, such as identification models, logos, coding, text, real-time design instant marking, which is simple, fast and exquisite, high efficiency and permanent security. It could improve the product phase and enhance the brand by marking fine lines, which is the best way to identify the product. Explore our high quality stationary laser marking machines in UAE.

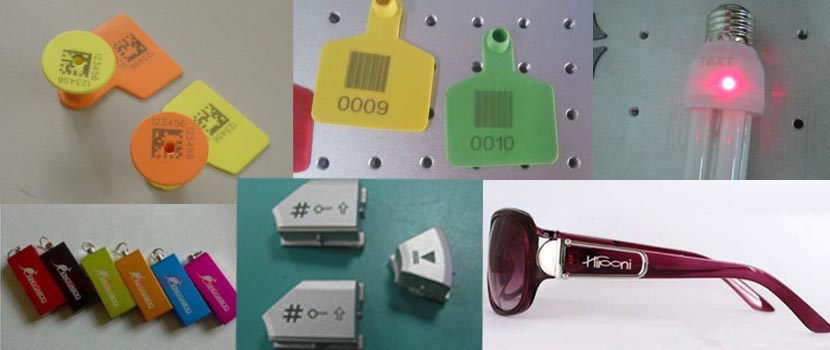

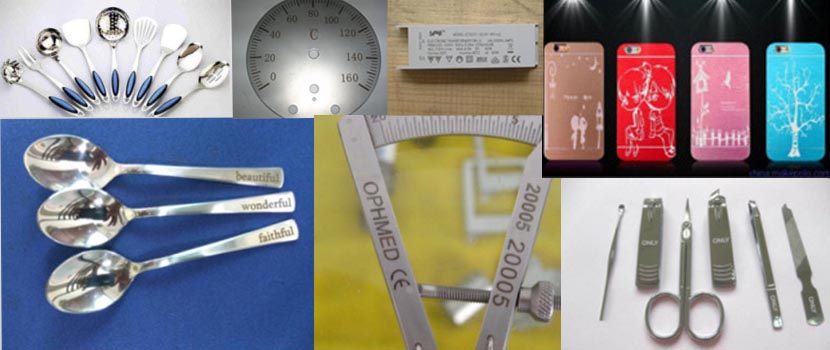

Applications samples:

Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass,

Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon,etc

Fiber laser marking machine advantages:

1) Long lifespan fiber laser source: 100 000 hours

2) It has good beam quality with small size, fast speed, long working life, flexible

3) Good Scaps controller, USB interfaces swift and stable transmission.

4) Low consumption: <400W, more economized and environmental.

5) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT, etc..

6) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.

7) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.

8) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

9) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

10) The fiber laser beams no need to adjust the laser optical path.

11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser.

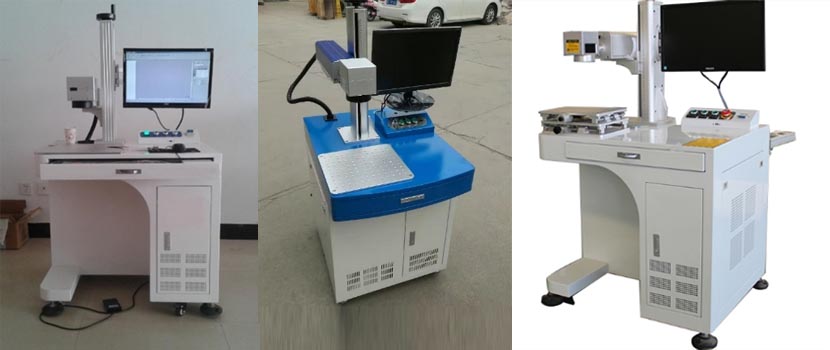

1).High table fiber laser machine

# High table type

# Working area: 100*100mm(Optional)

# 10w fiber laser power

# Import Lenses and mirror

# Cooling system: air cooling system

# PC control system: Windows XP or Windows 2000

# EZCAD software,etc

# Package: Strong wooden case

# Delivery Time: 7 working days after get deposit

# Payment term: 30% T/T in advance, 70% before delivery

# Warranty Time: 18 months

# Weight: 280kg

# Size: 1000*850*1300mm

# Feature: This type is more popular one with high table and is very convenient.

2).Fiber laser marking machine with IPG generator

# High table type

# Working area: 110*110mm(Optional)

# 30w fiber laser power from Germany IPG

# Import Lenses and mirror

# Cooling system: air cooling system

# PC control system: Windows XP or Windows 2000

# EZCAD software,etc

# Package: Strong wooden case

# Delivery Time: 7 working days after get deposit

# Payment term: 30% T/T in advance, 70% before delivery

# Warranty Time: 18 months

# Weight: 280kg

# Size: 1000*850*1300mm

# Feature: This type is more popular one with high table and is very convenient.

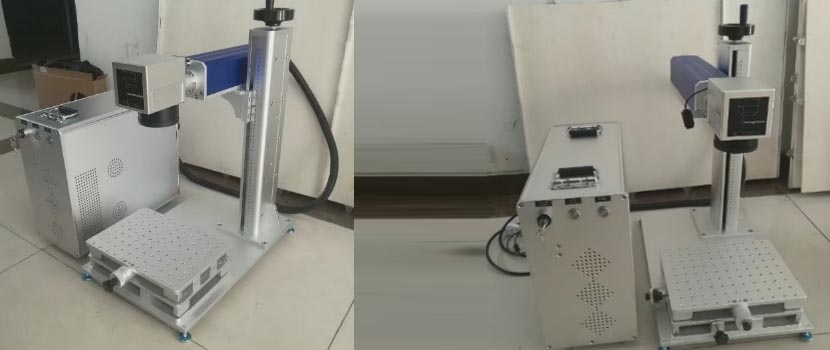

3).Portable type fiber laser marking machine 10w

# Portable type: Low table

# Working area: 100*100mm(Optional)

# 10w fiber laser power

# Import Lenses and mirror

# Cooling system: air cooling system

# PC control system: Windows XP or Windows 2000

# EZCAD software,etc

# Package: Strong wooden case

# Delivery Time: 7 working days after get deposit

# Payment term: 30% T/T in advance, 70% before delivery

# Warranty Time: 18 month years

# Weight: 110kg

# Size: 830x380x680mm

# Feature: This type is easy taking, and you could take it to anywhere since it is light.

And you need to squat down to control it or put it on your desk.(under your control).

4).Color fiber laser marking machine with MOPA:

When the fiber laser is marking with stainless steel, it could change the color of the  material surface by adjusting the laser beam, then obtain a decorative effect of different colors. The main principle of fiber laser making color on stainless steel is by selecting the appropriate parameters. By using the laser heating stainless steel, in the appropriate defocus, high pulse frequency and other appropriate parameters, the colorless and transparent Oxidation film could be get on the surface of the stainless steel.With the film in the light irradiation, the incident light interference to the surface of stainless steel shows a variety of colors.

# High table type

Working area: 100*100mm(Optional)
# 30w fiber laser power with mopa
# Import Lenses and mirror
# Cooling system: air cooling system
# PC control system: Windows XP or Windows 2000
# EZCAD software,etc
# Package: Strong wooden case
# Delivery Time: 7 working days after get deposit
# Payment term: 30% T/T in advance, 70% before delivery
# Warranty Time: 18 month years
# Weight: 280kg
# Size: 1000*850*1300mm
#Feature: This type is more popular one with high table and is very convenient.

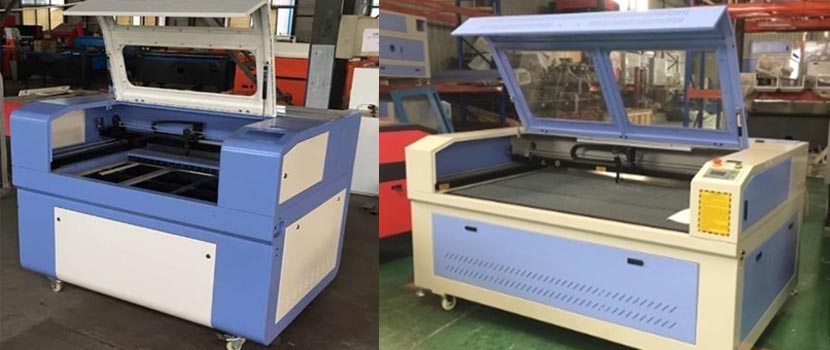

 Co2 laser machine

The working principle of the co2 laser machine is using high temperature acting on the surface of the material to be processed, at the

same time, draw the pattern, text, etc according to the customer’s request and then it will be put into the interior of the machine.

Applicable industries of co2 laser machine:
1, printing and packaging industry: Rubber laser engraving and cutting, paper products such as laser engraving cutting.
2, craft gift industry: Crystal Engraving, bamboo slips laser engraving, woodblock book laser engraving, mahogany laser engraving, color plate engraving, box crafts laser engraving, chessboard laser engraving, marble carving.
3, advertising industry: plexiglass laser engraving (cutting), color plate engraving, all kinds of plaque laser production.
4, leather clothing industry: all kinds of leather, clothing, fabric textile patterns, leather cutting and pattern engraving and cutting.
5, the model industry: construction model crossed, ABS board cutting, aviation model slices, wood chips and carving.
6, stone (tombstone) Industry: Marble, granite photos and text on the carving.
7, studio industry: in the album, photo paper, plexiglass, acrylic, wood carving photos, making special effects album.

# Engraving area: 600x900mm;1300x900mm;1300x2500mm

# Laser power: 60W/90W/100W/130W/150W laser tube

# Singapore Lenses and mirror

# Stepper motor and Leadshine drivers

# Y axis Taiwan HIWIN square Rails

# X axis Taiwan TBI ball screw transmission

# Red point

# Air pump

# Water pump/Water chiller

# Exhaust Fan

# Blade table/Honeycomb table

# Shanghai Fulong Belts transmission

# Ruida controller

# standard tools box

# USB offline

# water protection switch
# Optional parts: rotary, up-down table, auto focus
