    OVERVIEW

    Tube and Pipe Bending Machines in UAE

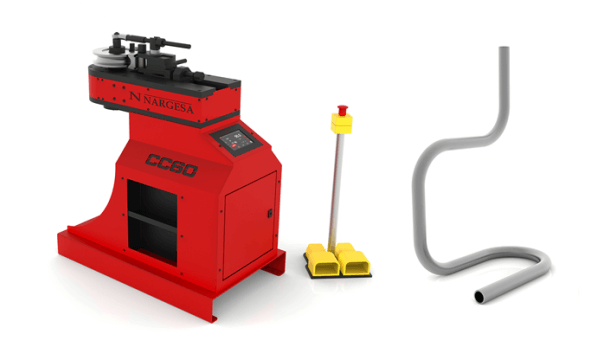

    CC60 Non-mandrel rotary tube and pipe bender

    CC60-non-manderl-rotary-tube-and-pipe-bender-machine-in-Dubai-UAE

    Feature
    Maximum working stroke: 60.3 mm or 2” Schedule-40 or 2” 1/4 x 4 mm

    The latest iteration of the CC60 Non-Mandrel Rotary Tube and Pipe Bender sets a new standard in tube bending technology. Capable of achieving curves of up to 180º on hollow profiles, it delivers the finest bent finishes available in today’s market. Its Touch Screen control system provides seamless interaction with a range of standard features, leveraging cutting-edge 4.0 technology. With its modern aesthetic, versatility, and accelerated bending speeds, it stands out as one of the premier machines in our industry. This machine can handle a variety of materials, including round, oval, square, and rectangular shapes, crafted from diverse metals like steel, aluminum, stainless steel, and copper, among others. Book your Tube and Pipe Bending Machines in UAE.

    Specifications

    • The largest size it can handle for S275 round steel pipe is 60.3 mm or 2 inches for Schedule-40 or 2-1/4 inches with a 4 mm thickness.
    • For aluminum pipe, it can accommodate sizes of 60.3 mm x 8 mm or 2.375 inches x 0.315 inches.
    • The maximum size for stainless steel pipes (304/316) is 60.3 mm x 3 mm or 2.375 inches x 0.160 inches.
    • When working with square tubes, it can handle sizes of 40 x 40 x 4 mm or 1.50 inches x 1.50 inches x 0.160 inches.
    • The equipment can achieve a maximum angle of curvature of 180 degrees.
    • The minimum radius of curvature should be at least 3 times the diameter of the pipe.
    • The maximum radius of curvature is 320 mm.
    • It features automatic rotation with speeds ranging from 1.1 to 3.5 revolutions per minute.
    • The repetition accuracy on the curve is within +/- 0.1 degrees.
    • It includes a reinforcement tool post support arm for pipes with diameters exceeding 40 mm.
    • The package includes 400 ml of BEND 8 lubricant.
    • The machine can bend in both right and left directions for added flexibility.
    • Quick die changeover can be completed within a maximum of 60 seconds.
    • It incorporates 4.0 technology for advanced capabilities.
    • The CNC control system is equipped with a 7-inch touchscreen, offering support for more than 20 different languages.
    • Safety pedals are provided on both the right and left sides for operator convenience.
    • Side shelving is included for tool storage.
    • All bend dies are constructed from tempered steel to extend tool life.
    • Counter dies are made from bronze alloys to minimize markings on the outside of bent profiles.
    • The machine can store up to 10,000 programs.

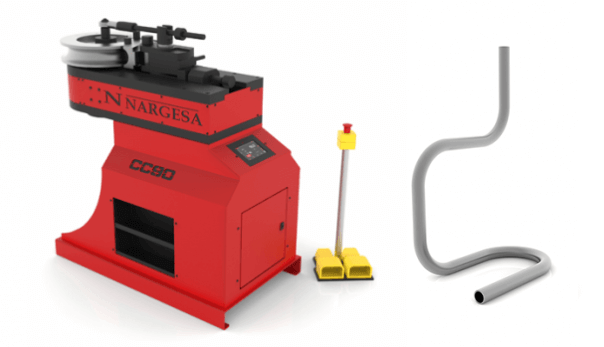

    Non-mandrel tube and pipe bender CC90 CNC

    Non-manderl-tube-and-pipe-bender-CC90-cnc-machine-in-Dubai-UAE

    Feature

    Maximum working stroke: 88.9 mm or 3” Schedule 40 or 3” 1/2 Whitworth or 3” ISO x 6 mm.

    The latest CC90 Non-Mandrel Rotary Tube and Pipe Bender, belonging to the new generation, is capable of achieving curves of up to 180º on hollow profiles, guaranteeing the highest quality bent finishes available in the current market. Its advanced Touch Screen control system provides users with interaction and access to standard features through cutting-edge 4.0 technology. With its modern design, versatility, and enhanced bending speeds, this machine stands out as one of the top offerings in our industry. It can handle various materials, including round, oval, square, and rectangular shapes, all crafted from a range of different metals such as steel, aluminum, stainless steel, and copper etc.

    Specifications

    1. It can handle S275 round steel pipes with a maximum size of 90mm or 3 inches for various standards, including 3 inches Schedule, 3 inches 1/2 Whitworth, or 3 inches ISO, with a 6mm thickness.
    2. For aluminum pipes, it can accommodate sizes of 88.9mm x 10mm or 3.5 inches x 0.393 inches.
    3. When working with stainless steel pipes (304/316), the machine can bend pipes with a maximum size of 88.9mm x 4mm or 3.5 inches x 0.157 inches.
    4. The largest square tube size it can handle is 60mm x 60mm x 4mm or 2.362 inches x 2.362 inches x 0.157 inches.
    5. The equipment can achieve a maximum angle of curvature of 180 degrees.
    6. It features automatic rotation with speeds ranging from 0.75 to 2.2 revolutions per minute.
    7. The minimum radius of curvature should be at least 3 times the diameter of the pipe.
    8. The maximum radius of curvature is 346mm or 13.60 inches.
    9. The machine offers high repetition accuracy on the curve, within +/- 0.1 degrees.
    10. A reinforcement tool post support arm is included for pipes with diameters exceeding 40mm.
    11. The package includes 400 ml of BEND 8 lubricant.
    12. The machine allows for bending in both right and left directions, facilitating the bending process.
    13. Quick die changeover can be completed in a maximum of 60 seconds.
    14. It incorporates 4.0 technology for advanced capabilities.
    15. The CNC control system is equipped with a 7-inch touchscreen, supporting more than 20 different languages.
    16. Safety pedals are provided on both the right and left sides for operator convenience.
    17. Side shelving is included for tool storage.
    18. All bend dies are constructed from tempered steel, extending the tool’s lifespan.
    19. Counter dies are made of bronze alloys to minimize markings on the outside of bent profiles.
    20. The machine can store up to 10,000 programs for ease of use and versatility.
