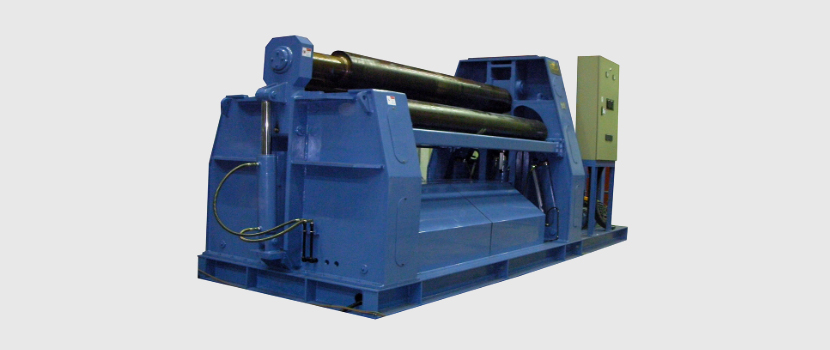

Plate Bending Roller – 4Roll
Feature
– Top roll only rotate with fixed
– Bottom roll move up/down and rotate
– Side roll rotate or move like pyramid
– Top-roll changable bigger or smaller according to workpiece size
– Decrease loss of edge bending
– Shorten operating time and decrease material loss if edge bending in hydraulic press
– Two type speed, thicker large power in low speed and fast work in high speed
– Roll heat-treatment to prevent surface scratch, twist and abrasion
– Use 4 roll made by forming and forging
– Oil cooling system to prevent oil temperature rising
– Guarantee Term: 24 months
– Fast speed A/S reaction
Option
– Top roll move system (prevent thin plate to skid)
– Auto Lubrication
– Digital scale
– Hot rolling
– Cone Bending Device
– Electronic balancing system for roll parallel moving
– NC control system
– In/Out working dies
– In / Out conveyor
– Support Roll and Side Roll for prevent sinking
– Wireless Remote Control
Model No: BR4
Bending | min | max |
Thickness | 6mm | 200mm |
Width | 1,000mm | 6,000mm |
Max Capa | 150t x 4,000L 180t x 3,600L 200t x 3,100L |

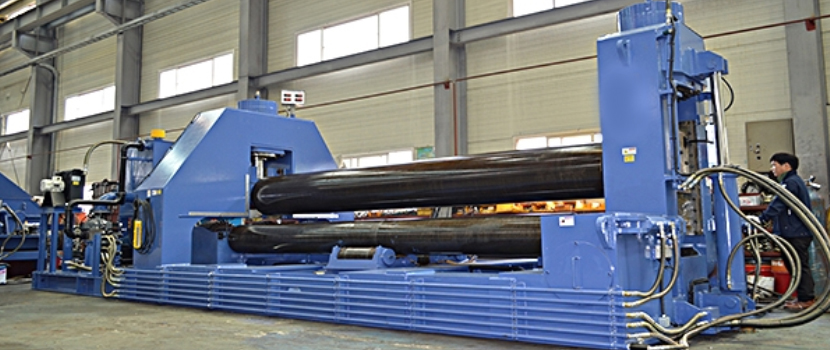

Plate Bending Roller – 3Roll
Roller Fixed Move
Feature
– Top roll move up and down simultaneously or severally
– Bottom roll Move forward and backward with fixing distance roll to roll
– Top-roll changable bigger or smaller according to workpiece size
– Decrease loss of edge bending
– Operate safe by lower bottom roll
– Cone-bending is easy using tilt angle of top roll
– Shorten operating time and decrease material loss if edge bending in hydraulic press
– Two type speed, thicker large power in low speed and fast work in high speed
– Roll heat-treatment to prevent surface scratch, twist and abrasion
– Use 3 roll made by forming and forging
– Oil cooling system prevent oil temperature rising
– Guarantee Term: 24 months
– Fast speed A/S reaction
Option
– Top roll move system (prevent thin plate to skid)
– Auto Lubrication
– Digital scale
– Hot rolling
– Cone Bending Device
– Electronic balancing system for roll parallel moving
– NC control system
– In / Out working dies
– In / Out conveyor
– Support Roll and Side Roll for prevent sinking
– Wireless Remote Control
Model No: CIM BR3 SFM
Bending | min | max |
Thickness | 6mm | 300mm |
Width | 800mm | 9,000mm |
Max Capa | 150t x 4,500L 300t x 3,600L |
|
Hot Bending | 300t x 4,500L |
