OVERVIEW
Hydraulic Press Brakes in UAE
Hydraulic press brakes represent cutting-edge metalworking technology, revolutionizing precision bending and forming processes. These machines utilize hydraulic systems to exert controlled force on a workpiece, facilitating accurate and efficient shaping of various materials. Renowned for their versatility, hydraulic press brakes in UAE accommodate a wide range of applications, from delicate sheet metal bending to heavy-duty plate fabrication. The user-friendly interface ensures ease of operation, while swift tool changes and a robust control panel enhance overall efficiency. With the ability to handle diverse tasks, hydraulic press brakes are indispensable in industries requiring intricate metal shaping, providing a powerful solution for craftsmen, manufacturers, and engineers seeking optimal performance in bending operations.

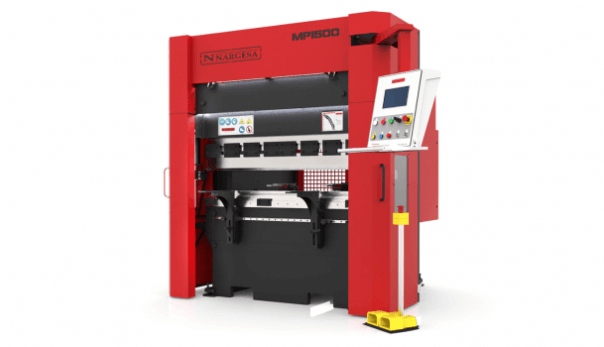

Hydraulic Press Brake MP1500CNC
Features
- Folding length 1500 mm
- 40 tons
The MP1500CNC NARGESA Hydraulic Press Brake elevates sheet metalworking to unprecedented levels, delivering exceptional efficiency and precision. Crafted with a chassis of welded, stabilized, and machined steel, its external design showcases sleek lines for a robust appearance, coupled with enhanced structural calculations, positioning these cutting-edge hydraulic press brakes as the new cornerstone in the sheet metalwork industry.
Equipped with a high-specification CNC control, operating these sophisticated machines has never been more straightforward and intuitive. The vivid color, high-resolution touchscreen graphics interface, and powerful CPU facilitate the seamless processing of even the most intricate bending operations and the calculation of sophisticated algorithms in microseconds. This ensures optimal performance, making these engineering marvels stand out in their field.
Specifications
- Punch working speed: 8,3 mm/s.
- Return speed of the punch: 120 mm/s.
- Lowering speed of the punch: 200 mm/s.
- Maximum punch displacement: 200 mm.
- Inner folding length: 1250 mm.
- Total folding length: 1500 mm.
- Back gauge displacement: 600 mm.
- Neck: 270 mm.
- Motor power: 5,5 KW / 7,5 HP.
- Three phase power: 230 / 400 V.
- Hydraulic Power: 40 Tn.
- Adaptive electronic pressure control.
- Chassis bending electronic compensator.
Hydraulic press brake MP3003 CNC
Features
- Folding length 3125 mm
- 120 tons.
The MP3003CNC NARGESA Hydraulic Press Brake elevates sheet metalworking to unprecedented levels of efficiency and precision. Crafted with a chassis of welded, stabilized, and machined steel, its external design boasts streamlined lines for a robust aesthetic, coupled with enhanced structural calculations. These cutting-edge hydraulic press brakes emerge as the new cornerstone in the sheet metalwork industry.
Equipped with a high-specification CNC control system, operating these sophisticated machines has become more straightforward and intuitive than ever. The vibrant, high-resolution touchscreen graphics interface and potent CPU facilitate the seamless processing of even the most intricate bending operations. Thanks to sophisticated algorithms calculated in mere microseconds, these engineering marvels deliver optimal performance in every aspect.
Specifications
A hydraulic unit equipped with redundant safety valves at 24 volts DC, featuring optics and pressure indication. It incorporates electronic compensation for hydraulic oil temperature. The front arms utilize linear recirculating ball screw guides, ensuring optimal grip on sheet metal. The side doors are equipped with electronic safety controls. The high-frequency laser sensor system remains unaffected by external light sources. Additionally, there’s a software-configured electronic muting system, an LED directional light strip for the bending zone, and Ethernet 10/100 Mbit LAN connectivity. USB 2.0 ports and a VGA connector are provided for updates, backup, and peripheral connections.
